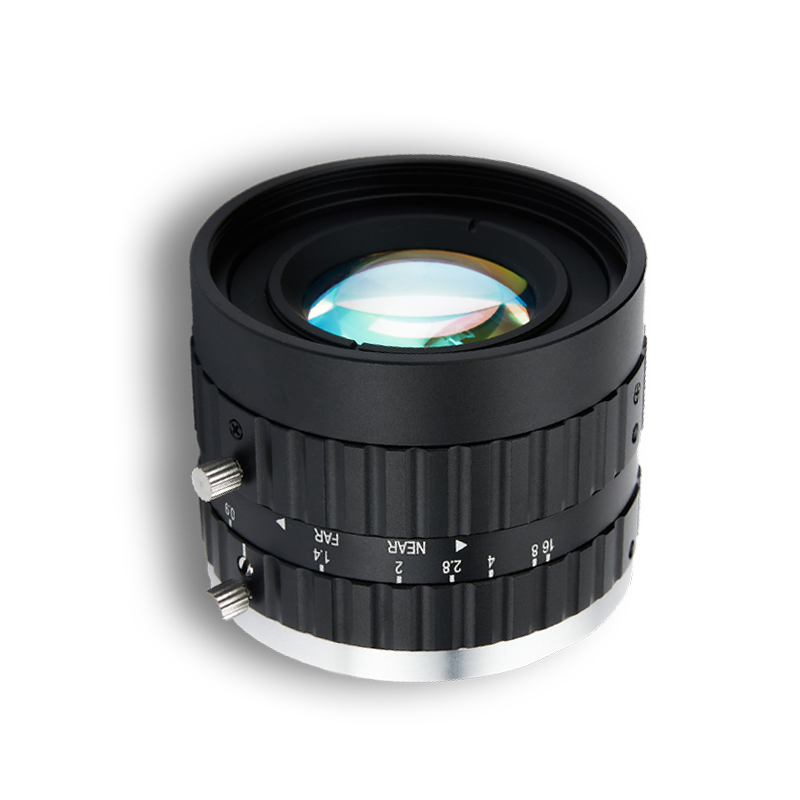

OP2502A 25mm SWIR Lens for Industrial Testing

OP2502A 25mm SWIR Lens for Industrial Testing

DESCRIPTION

Designed for the near-infrared band
Addresses a range of infrared applications
Working wavelength 800nm-1700nm
High transmittance, high uniformity
Small size and compact form factor

SENSOR

The IMX990/991 is a diagonal 8.2 mm (Type 1/2) CMOS active pixel type solid-state image sensor with a square pixel array and 1.31M effective pixels. This chip features a global shutter with variable charge-integration time. This chip has a wide waveband (0.4 碌m to 1.7 碌m) with high sensitivity, high resolution, low dark current and low power consumption.

Applications: Products Sorting, Foreign Material Inspection, Semiconductor Inspection, Temperature Estimation, Remote Observation.

PARAMETER

Aperture	0.9-16
Distortion [%]	<0.1%
Sensor size	蠁12.6
Focal Length [mm]	25
Working wavelength	800nm-1700nm
MOD	0.2m
Magnification	0.05X-0.141X
Flange Distance	17.526
Filter Size	M25.5脳P0.5
Mount	C
Weight	161g
Size	蠁50.8脳39.3
