Useful Range : 500-555nm
FWHM : 80nm
Tolerance : +/- 10nm
Peak Transmission : ≥90%
Surface Quality : 40/20
Compatible LED : 520nm, 525nm, 530nm

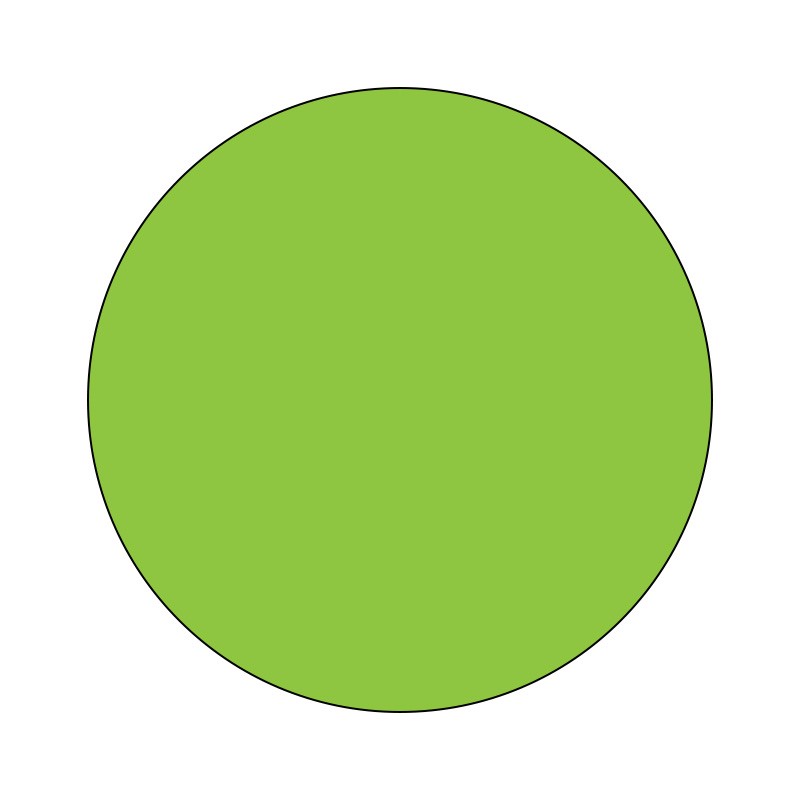

Bandpass Filter
525nm filter material is designed for use with green LED lighting, 532nm laser illumination and green UV fluorescence applications. A BP525 filter has a broader range, higher peak transmission and superior blocking of UV and NIR wavelengths compared to commonly found all-dichroic green bandpass filters – improving contrast by blocking significantly more of the unwanted light. Because of its filter glass substrate, it is also less sensitive to changes in angle of incidence.
Useful Range : 500-555nm
FWHM : 80nm
Tolerance : +/- 10nm
Peak Transmission : ≥90%
Surface Quality : 40/20
Compatible LED : 520nm, 525nm, 530nm
Machine Vision
line scan/wide angle
