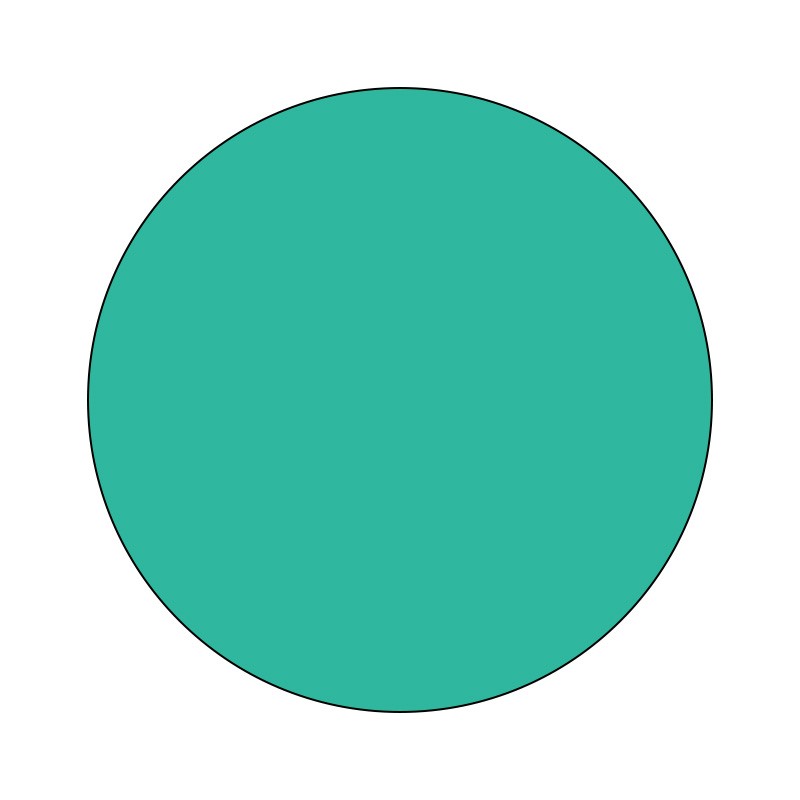

505nm Cyan Bandpass Filter

Bandpass Filter

Description:

505nm Cyan Blue Bandpass Filters for Machine Vision are single substrate, hard-coated filters designed to match the output of most cyan LEDs. Coupled with the spectral sensitivity of most CCD/CMOS sensors in use today that also peak in this range, using this filter can result in images that are especially bright and very high in contrast. It is particularly useful for line scan/wide angle applications.

Parameter:

Useful Range : 485-550nm

FWHM : 90nm

Tolerance : +/- 10nm

Peak Transmission : ≥90%

Surface Quality : 40/20

Compatible LED : 505nm

Application:

Machine Vision

line scan/wide angle
