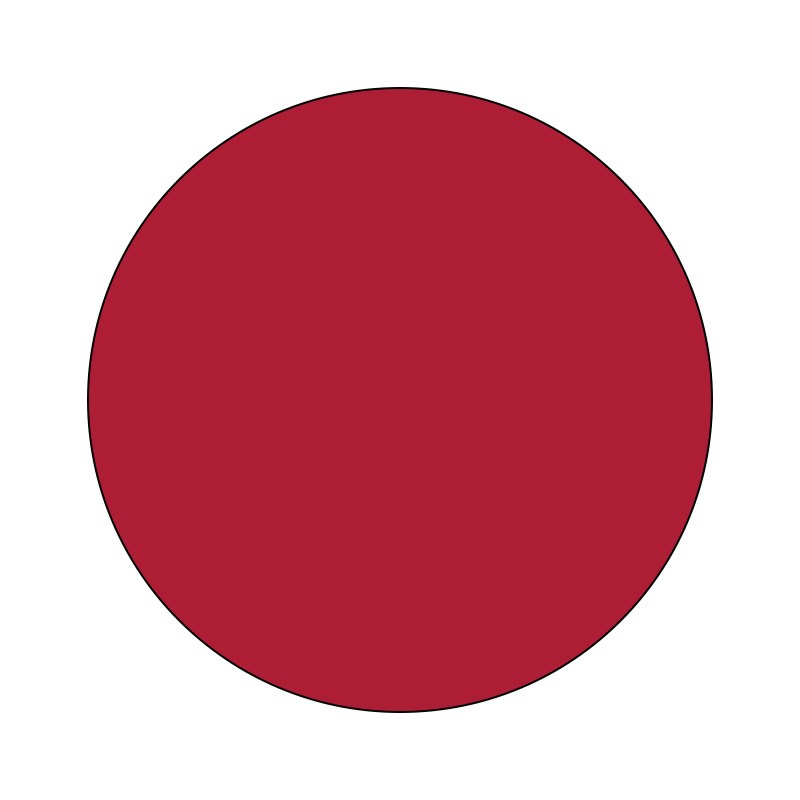

660/850nm Dual Bandpass Red + 850nm NIR

Multi Bandpass Filter

Description:

The 660/850nm filter has been designed primarily for ndvi imaging applications. When using a single camera, incorporation of this filter allows reflected red light (660nm) to be captured in the camera sensor’s red channel and reflected near- infrared light (850nm) to be captured in the sensor’s blue channel (the green channel is not used). Even when using an inexpensive consumer camera (that has first had its IR blocking filter removed), this easy separation then makes it possible to post-process the red and blue channels for NDVI by performing the calculation: NDVI = (blue – red) / (blue + red). Healthy vegetation will absorb (not reflect) red light and strongly reflect near-infrared light. Thus this information can then be used to apply a false color gradient to images to better highlight the contrast between regions of healthy vegetation vs. areas with stressed/diseased or no vegetation.

Parameter:

Useful Range : 645-675nm, 830-870nm

FWHM : 40nm, 50nm

Tolerance : +/-5

Peak Transmission : ≥90%

Surface Quality : 40/20

Application:

Machine Vision

NDVI Application

Agriculture
