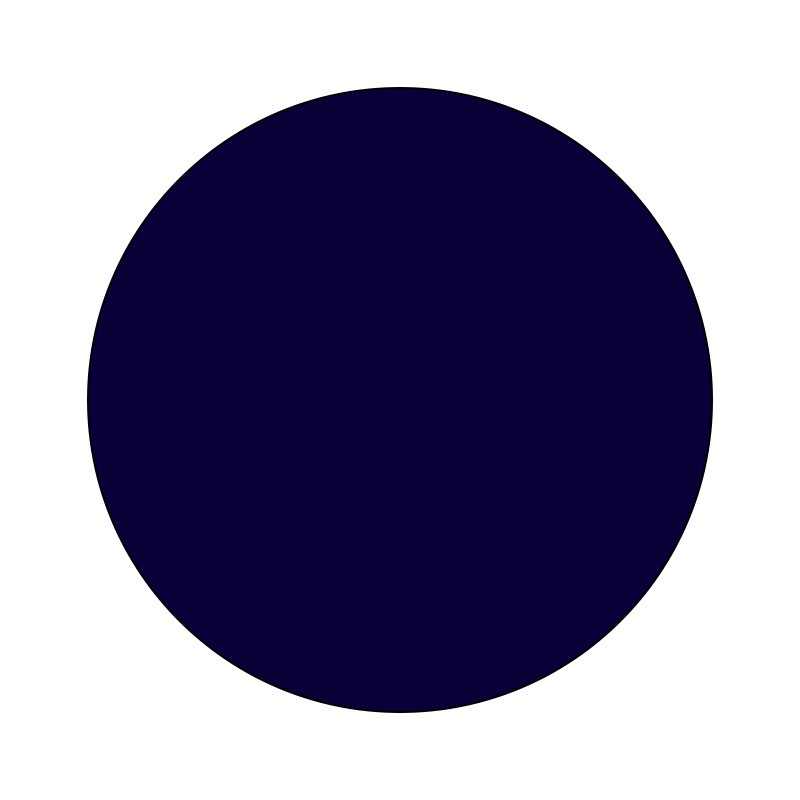

365nm Near-UV Bandpass Filter

Bandpass Filter

Description:

365nm UV Bandpass dichroic filters can be used with all UV LED, UV fluorescent and other UV-producing lamp-based lighting. 365nm filter material is designed to block the visible and pass UV light, including 395nm and all other popular UV LED wavelengths.  It is also useful for near-UV fluorescence imaging, blocking visible light and light from UVC LED excitation sources, allowing early removal of biofilms (for instance, in disinfection applications or biofouling of ship hulls) through tryptophan fluorescence detection. The substrate material is low-expansion Borofloat, making this filter particularly heat resistant.

Parameter:

Useful Range : 335-400nm

FWHM : 80nm

Tolerance : +/- 10nm

Peak Transmission : ≥85%

Surface Quality : 40/20

Compatible LED : 365nm

Application:

Machine Vision

UV imaging
